2D vs 3D Ultrasound: What Changes?

Compare 2D and 3D ultrasound. Learn how standard cross-sectional imaging differs from volume imaging, what each can show, and why 3D complements rather than replaces 2D.

2D ultrasound displays thin cross-sectional images in real time. 3D ultrasound acquires a volume of data that can be viewed from different planes or rendered as a three-dimensional surface. The major change is therefore not that one is 'old' and the other is 'better'; they represent anatomy differently and serve overlapping but distinct purposes. [11, 12, 13, 14]

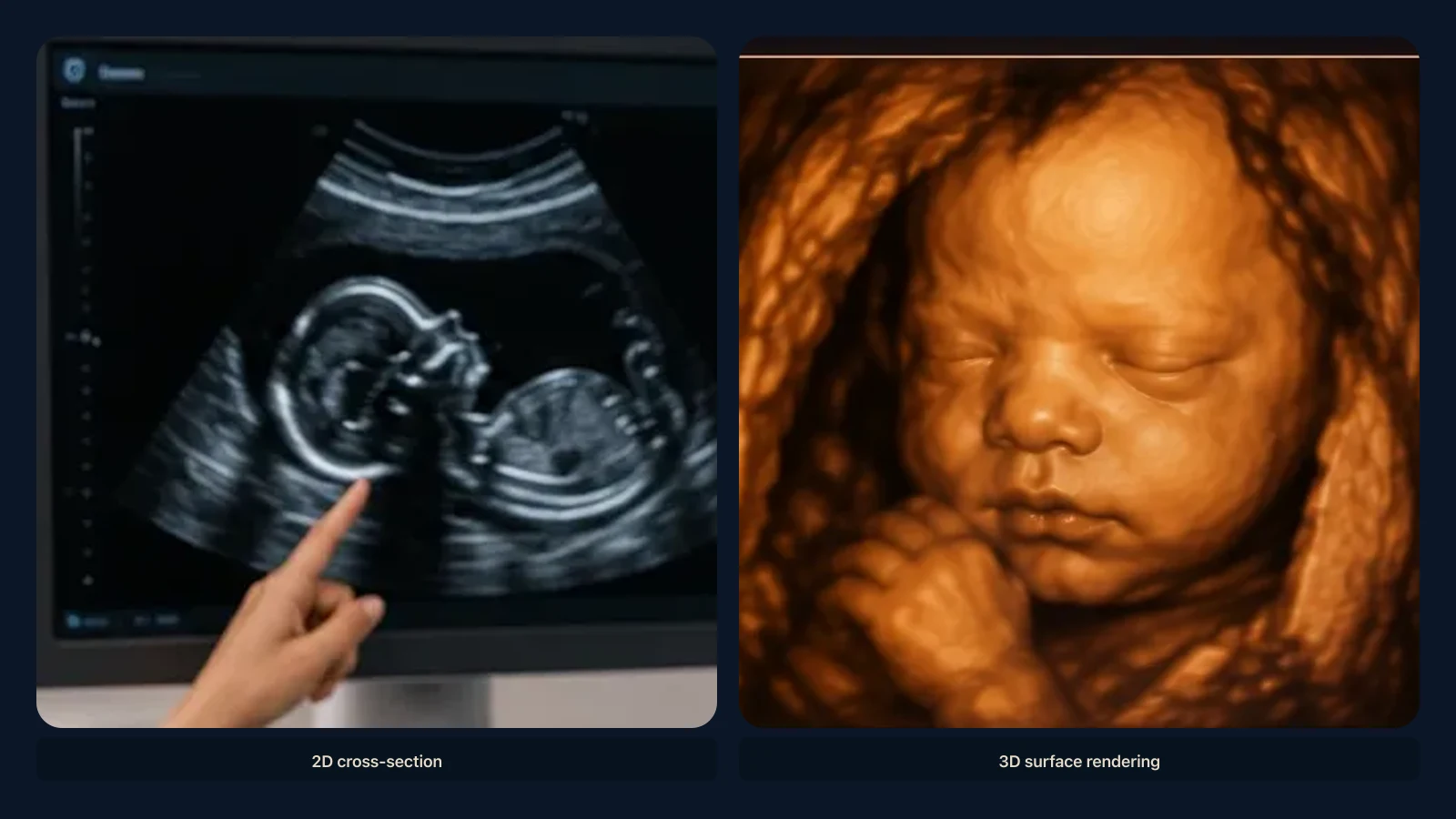

Educational visual for 2D vs 3D ultrasound. Educational illustration; not a diagnostic ultrasound image.
Visual overview of what changes between 2D and 3D ultrasound. Educational illustration; not a diagnostic ultrasound image.

Compare 2D and 3D ultrasound. Learn how standard cross-sectional imaging differs from volume imaging, what each can show, and why 3D complements rather than replaces 2D.

Educational schematic of 2D versus 3D ultrasound display. Educational illustration; not a diagnostic ultrasound image.
2D shows slices; 3D stores a volume that can be sliced or surface-rendered. Educational illustration; not a diagnostic ultrasound image.

Why 2D remains the foundation

Routine obstetric ultrasound is built around standardized 2D views and measurements. These planes allow clinicians to evaluate fetal anatomy, growth, placental location and other pregnancy features. Major professional guidelines describe structured 2D anatomical assessment in the mid-trimester examination. [1, 2]

Educational pipeline diagram titled why a rendered 3D ultrasound can look different from a photograph, from ultrasound echoes through 2D frames, volume acquisition and surface rendering to a displayed 3D face. Educational illustration; not a diagnostic ultrasound image.
Why a rendered 3D ultrasound can look different from a photograph: echoes become 2D frames, then a volume, then a displayed surface. Educational illustration; not a diagnostic ultrasound image.

What 3D adds

A stored volume can be rotated, sliced in multiple planes and surface rendered. For fetal facial assessment, 3D can help display spatial relationships and surface anatomy. Reviews describe applications to the fetal face, brain, heart and other structures, usually as an adjunct rather than a replacement for conventional imaging. [11, 12, 13, 14]

Educational infographic comparing 2D, 3D and 4D ultrasound side by side. Educational illustration; not a diagnostic ultrasound image.
2D, 3D and 4D ultrasound: a side-by-side comparison. Educational illustration; not a diagnostic ultrasound image.

Why a 3D image may be easier for families to recognize

A 2D plane requires the viewer to mentally reconstruct anatomy from grayscale slices. A surface-rendered 3D image can resemble an external shape, making the nose, lips and facial contour more immediately recognizable. That intuitive appearance does not mean it contains more diagnostic information for every question.

What 3D cannot fix

If the ultrasound beam cannot adequately visualize a structure, 3D processing cannot reliably recreate information that was never acquired. Obstruction, shadowing, motion and limited fluid interfaces can all remain problematic. [8, 20]

Educational diagram of limits 3D processing cannot overcome. Educational illustration; not a diagnostic ultrasound image.
If the beam never captured a structure, 3D processing cannot invent a reliable surface. Educational illustration; not a diagnostic ultrasound image.

From slices to volumes to tangible anatomy

The conceptual progression is straightforward: 2D ultrasound samples anatomy in planes; 3D acquisition organizes many planes into a volume; software can then display that volume spatially. When a volume is suitable for segmentation or surface extraction, it can support digital 3D visualization and selected physical modeling workflows. The physical model should remain traceable to the source imaging data.

Which should a patient choose?

For medical care, the examination type should be determined by the clinical need and the healthcare team. A 3D image can be valuable as an adjunct, but it should not substitute for the medically required diagnostic examination. [1, 2, 3, 4, 5]

Medical disclaimer

This article is intended for educational purposes only and does not provide medical advice, diagnosis, or treatment. Always consult a qualified healthcare professional regarding your individual medical care. This content is based on peer-reviewed scientific literature and current clinical guidelines available at the time of publication. Every article requires physician review before publication.

Key Takeaways

  • Routine obstetric ultrasound is built around standardized 2D views and measurements.
  • A stored volume can be rotated, sliced in multiple planes and surface rendered.
  • A 2D plane requires the viewer to mentally reconstruct anatomy from grayscale slices.
  • If the ultrasound beam cannot adequately visualize a structure, 3D processing cannot reliably recreate information that was never acquired.
  • The conceptual progression is straightforward: 2D ultrasound samples anatomy in planes; 3D acquisition organizes many planes into a volume; software can then display that volume spatially.

Frequently Asked Questions

Is 3D ultrasound better than 2D?

Not universally. 2D remains central to routine diagnostic assessment; 3D can add spatial and surface information.

Does 3D replace the anatomy scan?

No. The medically required examination uses standardized diagnostic views and measurements.

Why can 3D be easier to understand?

A surface rendering can make external anatomy more intuitive to a non-specialist than cross-sectional slices.
