How X-Rays Help Doctors See Broken Bones

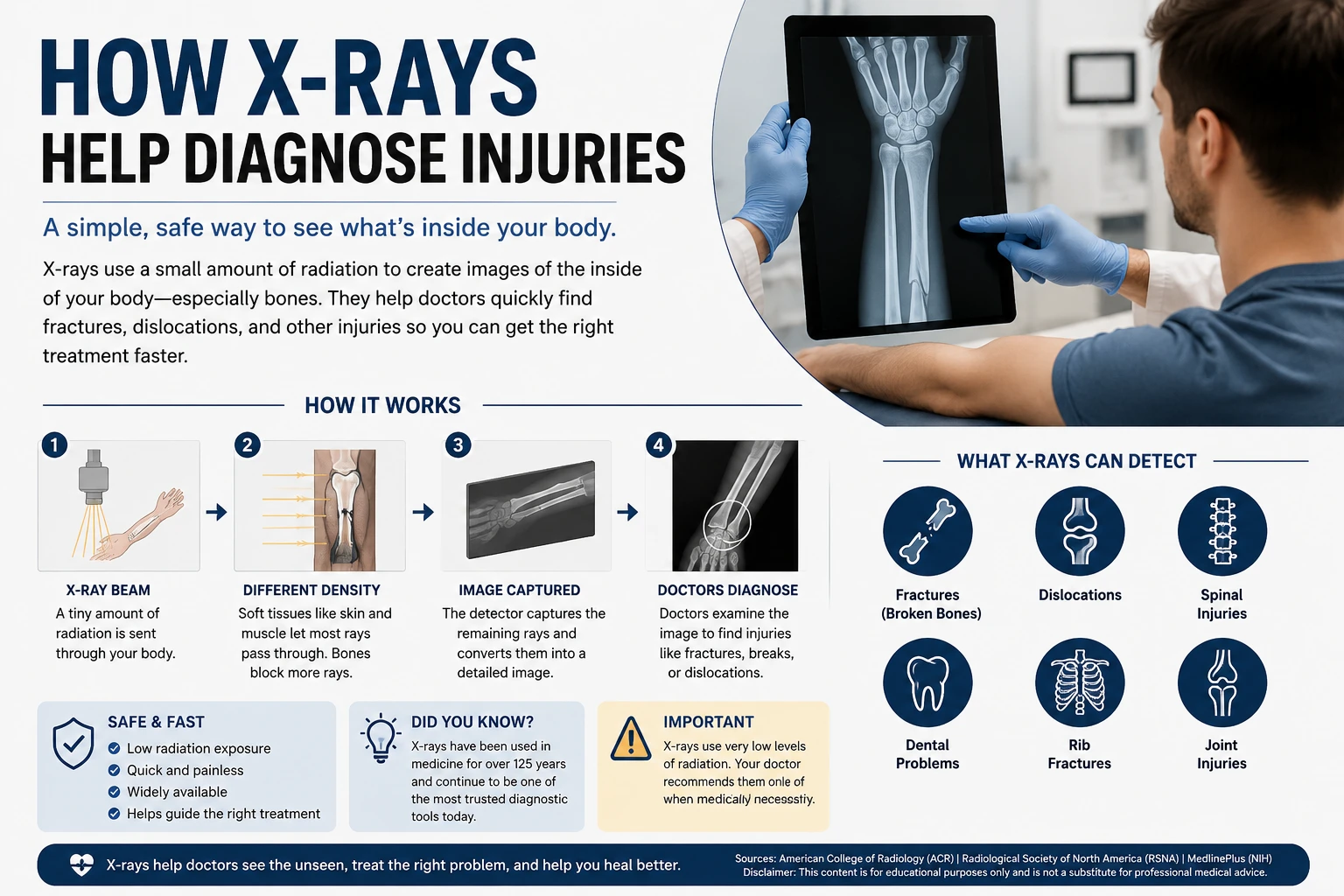

Dense bone blocks more X-rays than soft tissue, casting a bright shadow on the detector — a break shows as a dark line or gap.
X-rays show bones because dense tissue blocks more radiation than soft tissue, creating a bright outline; fractures appear as dark lines where bone continuity is interrupted.
X-ray imaging uses a controlled beam of ionizing radiation. Bone is dense and absorbs more of that beam than muscle, fat, or skin. Less radiation reaches the detector behind the bone, producing the white bone outline familiar on radiographs — with dark gaps where fractures interrupt continuity.
Why Bone Looks Bright
Calcium-rich bone attenuates X-rays strongly. Soft tissues attenuate less, appearing gray.
Air in the lungs appears dark because it attenuates very little — a different pattern than extremity bone films.
Using X-Rays Safely
Clinicians order X-rays when the diagnostic benefit outweighs small radiation exposure; shielding and modern equipment minimize dose.
Not every injury needs X-ray — exam findings and guidelines determine when imaging is appropriate.
References
RadiologyInfo.org — X-ray (radiograph) patient information (ACR / RSNA).
U.S. Food and Drug Administration — medical X-ray safety.
American College of Radiology — appropriateness criteria (clinical guidance).
Key Takeaways
- Calcium-rich bone attenuates X-rays strongly.
- Clinicians order X-rays when the diagnostic benefit outweighs small radiation exposure; shielding and modern equipment minimize dose.
- RadiologyInfo.
Frequently Asked Questions
Do bones glow on X-ray?
No — they block rays; they do not produce light.
Can X-rays show sprains?
Ligament injuries may not appear on plain films; MRI or ultrasound may be used when clinically indicated.
Are X-rays the same as CT?
CT uses many X-ray angles to build cross-sections; plain X-ray is usually a single projection or few views.
